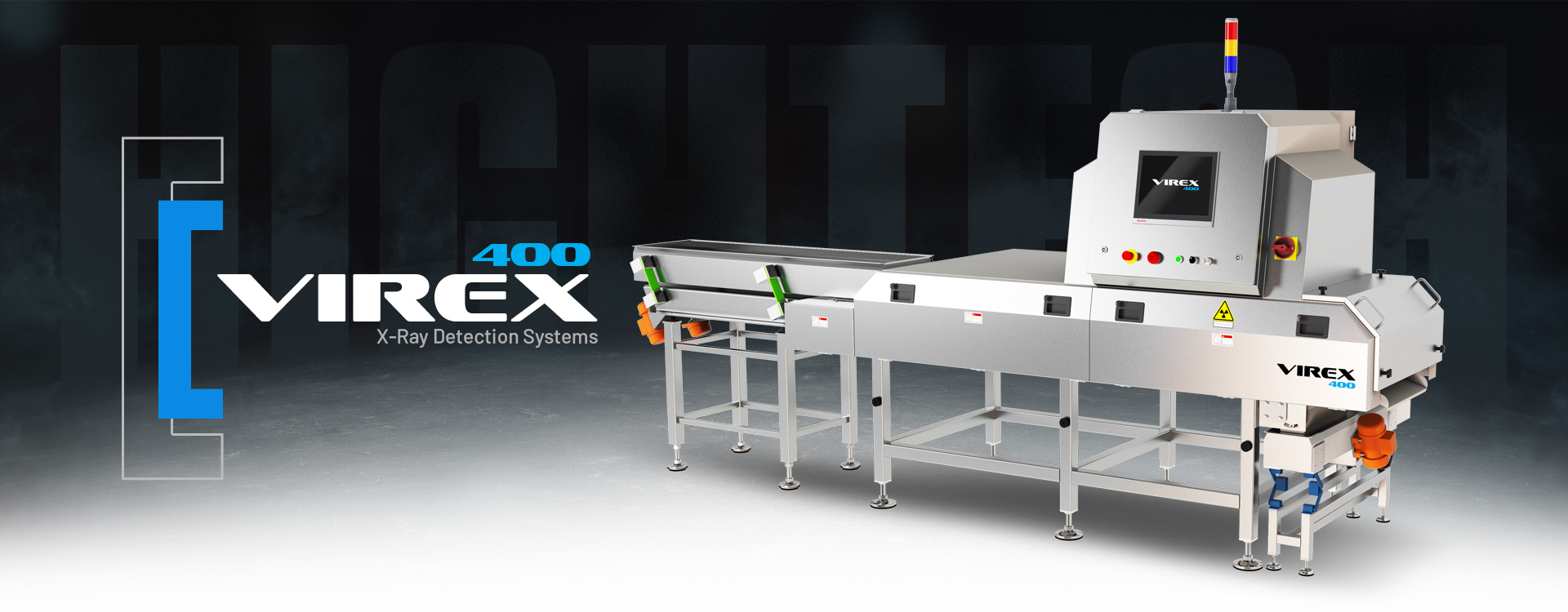

VIREX 400
X-Ray Detection Systems
BENEFITS
-
Single side object scannings by the X-Ray
Non-damaging scanning by the beam that pass through the product
Object detection for a structure which is more intensive than the accepted product
Glass, stone, sus, ceramic and metal detection
Detection of intensive structure of foreign material hidden in the inner zone of products
High sensitivity for small objects
Suitable for sticky and non-slip products from vertical ramps
Can be used for wet or dry products
Fully stainless steel structure
Long belt for proper fixing of products to be sorted
Short feeder for products that do not require spreading, thus occupying less
Space in the plant or long vibration feeder for good distribution of the products together with an integrated dust sieving system
Monophase Electricity
Ip 65
TECHNOLOGY
-
Single side x-ray scanning unit (top)
Up to 3000 scans per second
X-ray Signals Algorithm Software
400 Air Valves
Network Connection
Touch Screen User Interface
FUNCTIONAL DIMENSIONS
-
400 mm scanning area
CAPACITY
-
Capacity varies depending on the density of the product kg / m³
The product with density of 1000 kilograms per cubic meter can be nominally sorted at six tons per hour
TOTAL MACHINE DIMENSIONS
-
W x L x H - 1417 mm x 4061 mm x 2194 mm
REQUIREMENTS
| Electricity | 240 Vac / max 10 A |
| Pressured Air | Min 6 bar / max 10 bar |
| Air Quality | 40 μm filtered oil free, water free, dust free |
| Air Consumption | Typical 144 m³/h |
| Air Connection | 1 inch |
